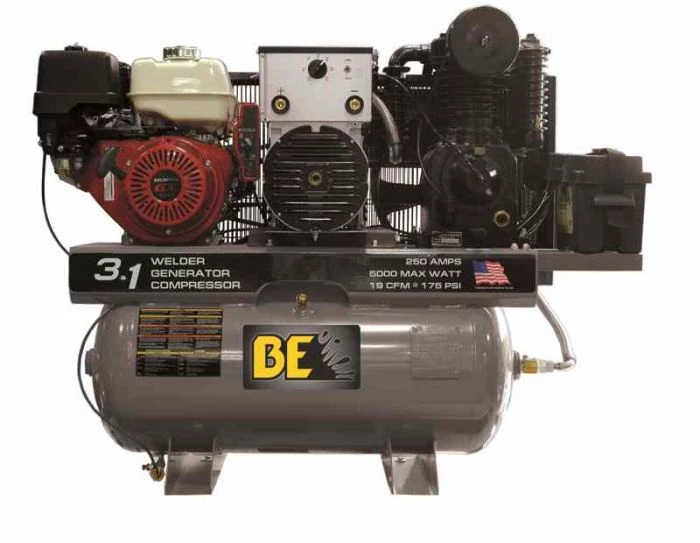

BE AC1330HB3000W 30 Gallon – Compressor / Welder / Generator
Features:
- 389cc Honda GX390 engine
- Electric start with battery
- 30 Gallon
- Access to compressor valves wihtout compressor head removal
- Cast iron pump
- Bearings on both ends of the crank shaft
- Full saddle mounting feet instead of pegged mounting feet
- Alternator on driven engine
- Pilot valve continuous operation
- Compressor Features:
- 22 CFM @ 100 PSI
- 19 CFM @ 175 PSI
- Heavy duty 2 stage pump
- For added torque received at 175 PSI
- Disc and spring valve
- For an industrial grade, instead of a reed or flapper style valve
- Head unloaded
- For a lower fuel cost and pump cooling
- Centrifugal unloader, large bore
- Bleeds head pressure down after cycle to save hard starts on the engine
- Belt guard air cooler
- Compressor discharge air cooled from up to 400F to 15F above ambient air, removes moisture from air and reduces tank and air line heat
- Automatic tank drain
- On-board battery mounted and wired
- No wiring to the front of the truck needed
- Generator Features:
- 5500 MAX AC output
- 5000 AC Continuous output
- 110/220 Volt outlets
- 41 AMPS @ 120 VOLT
- 20 AMPS @ 240 VOLT
- Welder Features:
- AMP Range – 180 – 250A
- Duty cycle – 250 AMPS @ 70%
- DC Voltage – 120 – 180A
