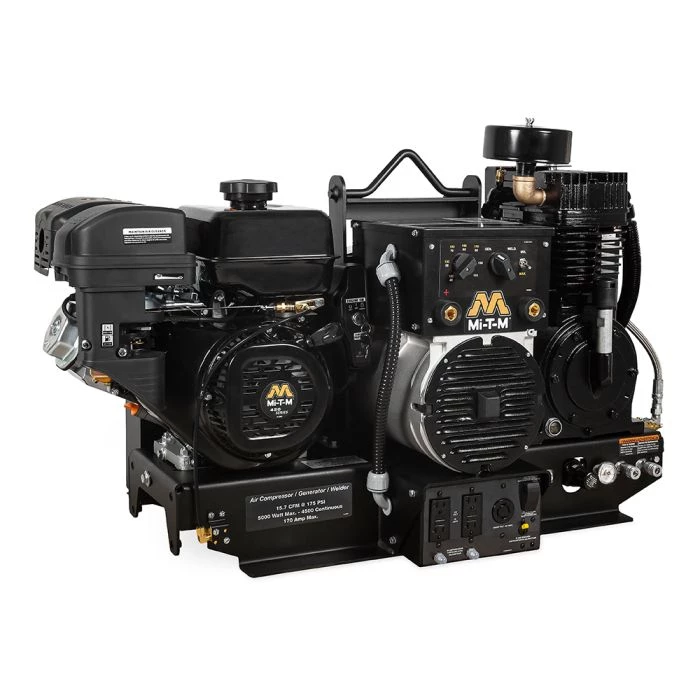

MI-T-M AGW-SM14-B Two-Stage Base Mount Compressor Generator Welder
Features:
- Generator Mode:
- AC current only
- Switch is set to full throttle
- Selector switch set to idle down
- Welder Mode:
- DC current only
- Selector switch must be set to full throttle
- Engine must be running full throttle
- Compressor Pump:
- Splash lubricated
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight indicator
- Generator:
- Brush-type 2 pole 120V/240V alternator
- Total harmonic distortion (THD) less than 6%
- 100% copper windingsÂ
- Welder:
- Amperage selection switch, 170A maximum
- Frame:
- 16-gauge powder coated belt guard
- Components:
- Manual drain valves for proper maintenance
- Regulator and two gauges for tank and outlet pressure
- 16 ½-inch fly wheel
- Equipped with 150-PSI maximum rated regulatorÂ
- Limited Warranties:
- 2 year Alternator
- 2 year Pump Exchange
- 1 year Mi-T-M engine
| MPN | AGW-SM14-B |
|---|---|
| Manufacturer | Mi-T-M |
| Wattage | 3600, W |
| HP/CC | 420cc |
| Starting System | Electric, Start |
| Fuel Tank Volume | 1.85, gallons |
| Receptacles | (2), 120V, 20A, GFCI, Duplex;, (1), 120V/240V, 20A, Twist, Lock |
| Length | 49" |
| Width | 22" |
| Height | 28.5" |
| Weight (lbs.) | 585 |
| Warranty | 2, Year, Alternator, /, 2, Year, Pump, Exchange, /, 1, Year, Mi-T-M, engine |
| Other | Displacement/Engine:Â 420cc, Mi-T-M, OHV, with, Electric, Start, -, Battery, and, Battery, Cables, Not, Included, Rated, Speed:, 3600, RPM, CFM, @, 90, PSI:, 16.4, CFM, @, 175, PSI:, 15.7, Compressor:Â Two, Stage, Cast, Iron, Max., AC, Output:, 5000, watts, Rated, AC, Output:, 4500, watts, Alternator, Wattage:, Cont., On-Load, @, 90, PSI:, 3000, watts, Alternator, Wattage:, Cont., On-Load, @, 90, PSI:, 2500, watts, Frequency/Wattage:Â 60Hz/120V/240V, Max., Amps, (120V/240V):, 41.5/20.8, Off-Load, Cont., Amps, (120V/240V):, 37.5/18.8, Of-Load, Duty, Cycle, (10, Min., Run, Time):Â 150A, @, 100%, DC, Voltage:Â 50-170A, Working, Range, Net, Weight:, 384, lbs., Shipping, Weight:, 449, lbs., Dimensions:, 49", L, x, 22", x, 28.5", H |
| Engine Manufacturer | Mi-T-M |
| Shipping Options | Standard, Delivery |
