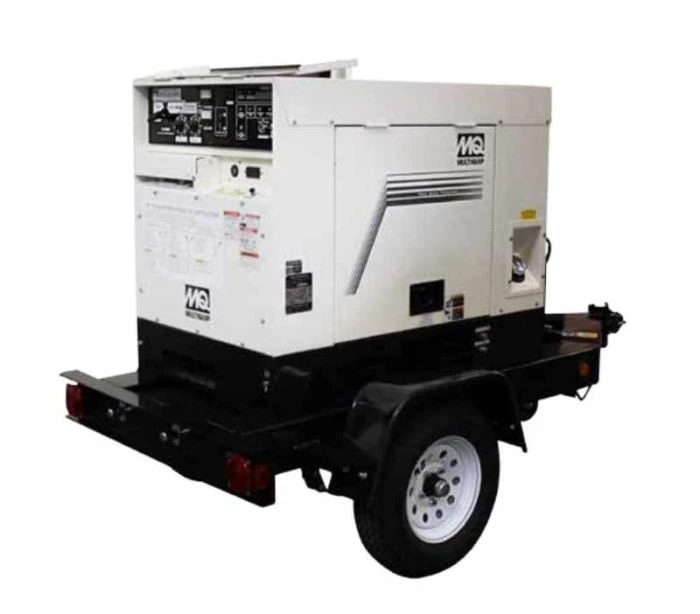

Multiquip DAW500SA4 Welder Generator 500A 3KW 120 through 240V

Multiquip DAW500SA4 – Welder Generator

Trailer Not Included.

Features:

• CC and CV welding capabilities
• Voltage regulation is maintained at ±10%
• Showcases a clean burning Tier 4 final EPA-approved Kubota diesel engine
• Electric-start, Lifting bail, external oil/fuel drains come as standard features
• Excels in SMAW, FCAW, GMAW, GTAW and ACAC welding processes
• Average rated load sound is 74 dB at 23ft

Unit Specifications

• DC Voltage CC: 38 V CV: 16-40 V
• DC Current CC: 500 A CV: 500 A
• Current Range 40-500 A
• Max Duty Cycle
• w/ Full Amps Availible 100% @350 A
• Welding Processes SMAW
• FCAW
• GMAW
• GTAW
• ACAC
• Fuel Tank Capacity 12 gal 0 L
• Fuel Consumption
• at Rated Load 1.3 gph
• Generator Specifications
• AC Power Output
• (Single Phase) 3 kW
• Cycle 50/60 Hz
• Voltage 120 V
• Amperage 25 A
• Voltage Regulation 7 %
• Receptacles NEMA 5-20R 125V GFCI 20A
• NEMA L5-30R 125V Twist-Lock 30A

Dimensions & Weights

• Overall Length 52 in 1330 mm
• Overall Width 31.49 in 800 mm
• Overall Height 44.48 in 1130 mm
• Shipping Dimensions 52 x 31.49 x 44.48 in
• 1330 x 800 x 1130 mm
• Operating Weight 1302 lb 591 kg
• Shipping Weight 1175 lb 533 kg
