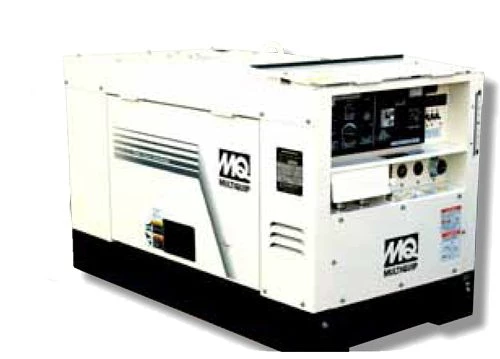

Multiquip DLW300ESA1 Welder Generator 300A 10.5kW Kubota Diesel

Multiquip DLW300ESA1 – Welder Generator 300A 10.5kW Kubota Diesel

Features:

• Delivers up to 300 amps as a welder with the convenience of 10.5 kW of AC power as a generator
• Can draw simultaneous AC power while welding
• Amazing voltage regulation @ 1.5% (+/-)
• Tier 4 final Kubota diesel – Model D722
• Arc Force control allows the operator to fine tune DC current during low voltage welding conditions which helps in preventing electrodes froms sticking during short arc length welding
• Smooth arc characteristics and more consistent, quality weld penetration
• E-mode improves fuel efficiency by allowing one operator to weld up to 160 amps while the engine maintains idle speeds.
• SMAW, FCAW, GMAW, GTAW and ACAC welding processes
• Sound attenuated cabinet reduces noise output to 59 dBA @ 23′
• External fuild drains for easy maintenance
• Full panel GFCI protection – OSHA and NEC compliant
• Options – Wire remotes, welding cable, cable carriers, tool box, trailers, cold weather items are available for this model

Unit Specifications

• DC Voltage CC: 31 V
• DC Current CC: 300A
• Current Range 35-300 A
• Max Duty Cycle
• w/ Full Amps Availible 100% @280 A
• Welding Processes SMAW
• FCAW
• GTAW
• ACAC
• Fuel Tank Capacity 9.5 gal 36 L
• Fuel Consumption
• at Rated Load 0.66 gph
• Generator Specifications
• AC Power Output
• (Single Phase) 10.5 kW
• Cycle 50/60 Hz
• Voltage 120/240 V
• Amperage 87/44 A
• Voltage Regulation 1.5 %
• Receptacles NEMA 5-20R 125V GFCI 20A
• NEMA L5-30R 125V Twist-Lock 30A
• NEMA L6-30R 250V Twist-Lock 30A
• CS-6369 125/250VAC Twist-Lock 50A
• **TRLR-MPXF has a built in 28 gal. fuel cell

Dimensions & Weights

• Overall Length 50.75 in 129 mm
• Overall Width 26.75 in 68 mm
• Overall Height 33.1 in 84 mm
• Shipping Dimensions 53 x 30 x 38 in
• 134.5 x 76 x 95.6 mm
• Operating Weight 849 lb 386 kg
• Shipping Weight 896 lb 407 kg
• Notice: Features and equipment specifications are subject to change without notice.
