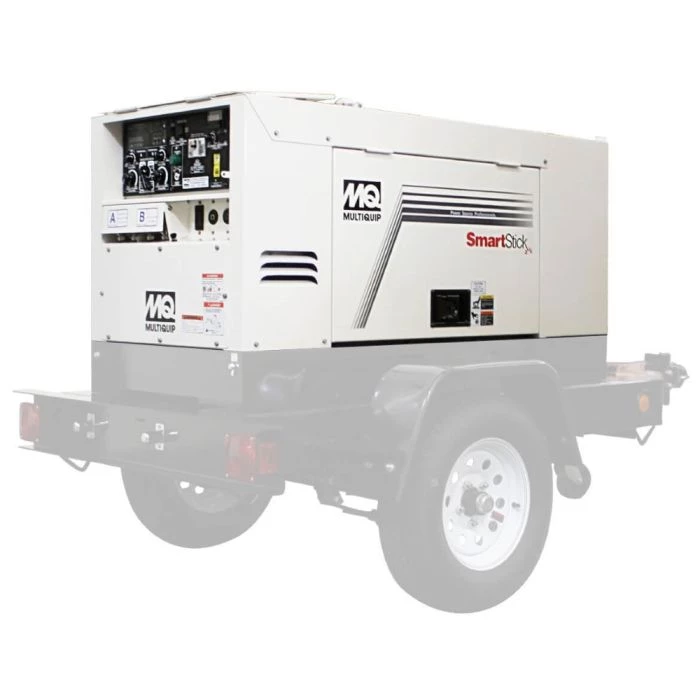

Multiquip DLW400ESA4 – Welder
Trailer Not Included.
Features:
- Draws simultaneous AC power while welding
- The convenience of one-man or two-man opeation
- Delivers up to 400 amps as a welder, 14kW of AC power
- Arc force control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes froms sticking during short arc length welding
- Smooth arc characteristics and more consistent, quality welds
- Super clean voltage regulation 1.5% (+/-)
- Tier 4 final Kubota diesel engine D902
- E-mode improves fuel efficiency b allowing oprator to weld at idle up to 240 amps
- Noise level produces only 70 dBA
- Full panel GFCI protection – OSHA and NEC compliant Smart stick sensor to automatically shut off the engine during periods of no load and restart when operator strikes the welding rod
Unit Specifications
- DC Voltage CC: Single 34V, Dual 27V V CV: Single 35V, Dual 28V V
- DC Current CC: Single 400, Dual 200 A CV: Single 400, Dual 200 A
- Current Range Single 30-400, Dual 30-200 A
- Max Duty Cycle
- w/ Full Amps Availible 100% @Single 350, Dual 175 A
- Welding Processes SMAW
- FCAW
- GMAW
- GTAW
- ACAC
- Fuel Tank Capacity 11.1 gal 42 L
- Fuel Consumption
- at Rated Load 1.3 gph
- Generator Specifications
- AC Power Output
- (Single Phase) 14 kW
- Cycle 60 Hz
- Voltage 120/240 V
- Amperage 116/58 A
- Voltage Regulation 1.5 %
- Receptacles NEMA 5-20R 125V GFCI 20A
- NEMA L5-30R 125V Twist-Lock 30A
- NEMA L6-30R 250V Twist-Lock 30A
- CS-6369 125/250VAC Twist-Lock 50A
- **Optional TRLRMPXF has a built in 28 gal. fuel cell
Dimensions & Weights
- Overall Length 61 in 1550 mm
- Overall Width 29 in 737 mm
- Overall Height 35 in 890 mm
- Shipping Dimensions 63 x 30 x 41 in
- 1600 x 762 x 1041 mm
- Operating Weight 1144 lb 519 kg
- Shipping Weight 1027 lb 466 kg
