Multiquip GA6HR Portable Generator – 6 kW Honda GX340 – Recoil

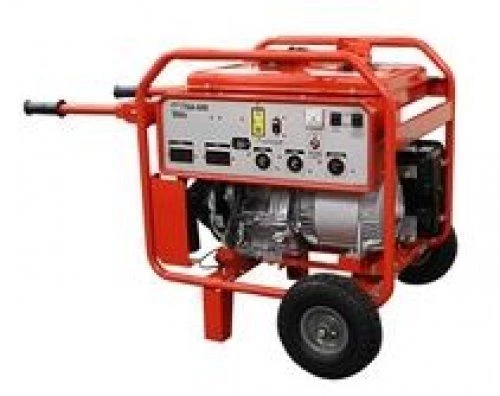

Multiquip GA6HR Portable Generator

6 kW, 120/240V, Honda

Multiquip GA6HR Portable Generator is a power source that is versatile enough to handle changing requirements. It is powered by Honda’s GX-340 engine with low-oil shutdown and automatic idle control.

• Brushless generator design requiring less maintenance
• Full panel GFCI protection – OSHA and NEC compliant
• 100% copper windings for maximum conductivity
• Wheel kit – Hour meter – Folding lifting bale are now standard equipment
• Powered by Honda’s GX-340 engine with low-oil shutdown and automatic idle control.
• Twin duplex receptacles and three T-Lock receptacles for job site versatility
• Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
• Lightweight and compact design for easy transport



Unit Specifications

Alternator Design	Brushless
Frequency	60 hz
Phase	Single Phase
Voltage	120/240 V
Sound level at 30 ft	75 dBA
Fuel Tank Capacity	5 gal	19 L



Power Generation

	Maximum	Continuous
Watts	6000 W	5000 W
Amps at 120V	50 A	41.6 A
Amps at 240V	25 A	20.8 A



Receptacles & Circuit Breakers

Main Circuit Breaker	23 A
Number of Poles	2
1 Receptacle of Each:	L5-20R 125V T-Lock 20A L5-30R 125V T-Lock 30A L14-30R 125/250V T-Lock 30A
2 Receptacle of Each:	5-20R 125V GFCI 20A
